What 3.2mm Means in Inches

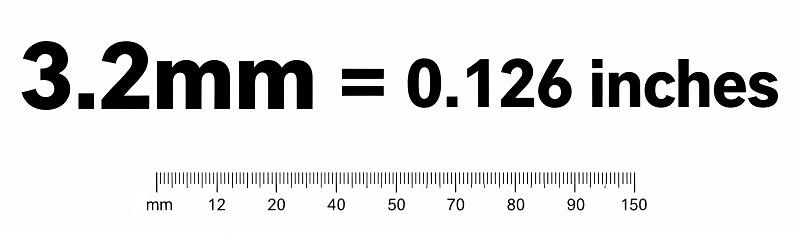

3.2mm to inches equals 0.12598 inches, commonly rounded to 0.126 inches in engineering documentation. This value sits just above the fractional equivalent of 1/8 inch (3.175mm), with a difference of only 0.025mm — small enough that many general applications treat them as interchangeable, but significant enough that precision assemblies demand exact specification.
The conversion formula is straightforward:
inches = mm ÷ 25.4 = 3.2 ÷ 25.4 = 0.12598 in
In PCB manufacturing and mechanical design, getting this right matters because a 0.025mm gap between 3.175mm and 3.2mm can affect enclosure fit, stackup calculation, and tolerance stacking across a full assembly. Always specify exact dimensions on fabrication drawings and avoid mixing metric and imperial values without explicit conversion notes.
Why This Conversion Matters in PCB Design
Most PCB work uses metric units exclusively, but when a product is designed in an imperial-dominant market — particularly the United States — drawings, enclosures, and mechanical specifications often arrive in inches. Engineers converting between systems need to know:
- Board thickness expressed in inches for enclosure fit
- Drill diameters when tools are sourced in imperial sizes
- Stackup calculations where copper and laminate thicknesses mix unit systems
- Tolerance specifications on drawings that reference 1/8 inch rather than 3.2mm
In production, a board designed at 3.2mm nominal will have a fabrication tolerance — typically ±10% for standard processes, meaning the delivered board may range from 2.88mm to 3.52mm. When that tolerance is converted to inches, the range becomes 0.1134–0.1386 in. If the enclosure was designed for exactly 0.125 in, this creates a potential fit problem that a simple unit conversion cannot solve.
How 3.2mm Compares to Standard PCB Thicknesses
| Nominal Thickness | Inches (Exact) | Approximate Fraction | Common Usage |
|---|---|---|---|
| 0.4mm | 0.0157 in | — | Flex circuits, compact wearables |
| 0.8mm | 0.0315 in | 1/32 in | Consumer electronics, mobile devices |
| 1.0mm | 0.0394 in | — | Consumer electronics, IoT modules |
| 1.2mm | 0.0472 in | — | Industrial sensors, compact controllers |
| 1.6mm | 0.0630 in | 1/16 in | Most common general-purpose thickness |
| 2.0mm | 0.0787 in | — | Standard industrial boards |
| 2.4mm | 0.0945 in | 3/32 in | Power supplies, heavier assemblies |
| 3.0mm | 0.1181 in | — | Rigid industrial and LED boards |
| 3.2mm | 0.1260 in | ~1/8 in | Heavy-duty industrial, power, LED |
| 3.6mm | 0.1417 in | — | Special mechanical applications |
| 6.0mm | 0.2362 in | — | Extreme-rigidity backplanes |
The most commonly ordered PCB thickness values globally are 1.6mm and 2.0mm, accounting for the majority of production volume. 3.2mm represents a specialty thickness chosen when standard boards lack sufficient rigidity, when mechanical fit demands a specific imperial dimension, or when thermal and structural requirements push beyond what 2.0mm boards can deliver.
When Engineers Choose 3.2mm Thickness
The decision to specify 3.2mm is driven by four primary factors.
Mechanical rigidity. A 3.2mm board is roughly twice as stiff as a 1.6mm board for the same dimensions. In products subject to vibration, heavy connectors, or long unsupported spans, the added stiffness prevents flex cracking, solder joint fatigue, and connector failure.
Enclosure and fit constraints. When an American-designed enclosure specifies a 0.125-inch slot or standoff spacing, 3.2mm is the nearest metric equivalent. Specifying 3.175mm exactly can create procurement complications if the laminate is only available in metric-standard thicknesses.
Power and thermal management. Thicker boards provide more volume for internal copper planes, wider traces, and better heat spreading. In LED drivers, motor controllers, and power conversion boards, this additional thermal mass reduces hot spots and improves reliability.
Vibration and shock resistance. Military, transportation, industrial automation, and outdoor equipment often require boards that survive mechanical stress. A 3.2mm board with appropriate copper weight can withstand significantly more flex and impact than a standard 1.6mm board.
Materials and Layer Stackup Considerations
The base material for most 3.2mm PCBs remains FR-4 glass-reinforced epoxy laminate, which offers the best balance of cost, availability, and performance for general industrial use. For higher-temperature applications, materials such as high-Tg FR-4, polyimide, or ceramic-filled laminates may be specified.
A typical 3.2mm stackup for a 4-layer board might look like this:
| Layer | Material | Thickness |
|---|---|---|
| Top copper (1 oz) | Copper foil | 0.035mm |
| Prepreg | FR-4 7628 | 0.21mm |
| Inner copper (1 oz) | Copper foil | 0.035mm |
| Core | FR-4 1080 | 1.0mm |
| Inner copper (1 oz) | Copper foil | 0.035mm |
| Prepreg | FR-4 7628 | 0.21mm |
| Bottom copper (1 oz) | Copper foil | 0.035mm |
The actual stackup varies by layer count, copper weight, and laminate grade. What matters for the buyer is that the total nominal thickness must hit 3.2mm after lamination, and this is controlled by selecting the correct prepreg and core materials before production begins. Requesting a stackup drawing from your manufacturer before ordering confirms that the designed thickness will actually be achieved.
For boards requiring higher thermal stability, specify high-Tg laminate (glass transition temperature above 170°C) to maintain dimensional integrity during reflow and field operation.
Manufacturing Challenges Specific to 3.2mm Boards
Thicker boards introduce process complexities that do not appear at 1.6mm or 2.0mm.
Drilling difficulty increases. The aspect ratio — the ratio of board thickness to drill diameter — is higher in thick boards. A 0.3mm drill through a 3.2mm board gives an aspect ratio of approximately 10.7:1, which is near the practical limit for standard mechanical drilling. Below 0.3mm drill diameters, laser drilling or specialized microvia processes may be required, increasing cost significantly.
Lamination stress rises. More prepreg layers and thicker cores create greater internal stress during the lamination cycle. This can result in lamination voids, resin starvation, or copper breakage at PTH (plated through-hole) walls if process parameters are not carefully controlled.
Drill bit wear accelerates. Longer drill travel through thicker material generates more heat and friction, leading to faster tool wear. In high-volume production, this means more frequent tool changes and tighter process monitoring to maintain hole quality.
Board warpage risk increases. Uneven copper distribution across layers, combined with the greater total thickness, makes 3.2mm boards more prone to warpage during thermal cycling. Design rules should balance copper density on all layers, and manufacturers should specify warpage limits in the fabrication notes.
Surface finish uniformity. Whether using HASL, ENIG, immersion tin, or OSP, the surface finish must remain uniform across the board. Thicker boards with heavier copper can create flow variations during HASL processing, requiring adjusted parameters.
Design Tips for 3.2mm PCB Projects
Engineers specifying 3.2mm boards should address these points early in the design phase.
Confirm the tolerance on your drawing. Do not write only “3.2mm” without a tolerance. A reasonable default is ±10%, but critical mechanical fits may require ±5% or tighter. Specify this explicitly, because tighter tolerance may require material selection changes and additional QC steps.
Balance copper distribution. Mismatched copper density between top and bottom layers, or between inner layers, creates asymmetric stress during lamination. Keep copper coverage as even as possible, and add copper fills to areas that would otherwise be bare.
Use via-in-pad carefully. At 3.2mm thickness, via-in-pad structures require filled and planarized vias to avoid solder wicking. Discuss this with your fab house before committing to the design.
Check drilling aspect ratios. If your design includes fine-pitch vias or microvias, verify that the fab house can achieve the required aspect ratio at the board thickness you specified. Many standard shops may not support aspect ratios above 10:1 for mechanical drilling.
Account for component lead length. Through-hole components on a 3.2mm board require longer leads than on a 1.6mm board. This affects component sourcing, insertion equipment setup, and soldering process parameters.
Cost Implications of Choosing 3.2mm
Choosing 3.2mm over standard 1.6mm affects cost at multiple levels.
Material cost increases. Thicker laminate consumes more raw material per board. FR-4 laminate pricing scales roughly with thickness, so expect material cost to increase by 60–80% compared to an equivalent 1.6mm board of the same area.
Drilling cost rises. Longer drill cycles and faster tool wear translate to higher per-hole costs. High-aspect-ratio drilling may require specialized tooling that commands premium pricing.
Lamination cycle may extend. Some manufacturers increase press cycle time for thicker stackups to ensure full resin flow and cure, adding to per-panel processing cost.
Testing may require adjustment. Flying probe and bed-of-nails fixtures may need recalibration for the thicker board, particularly for impedance-controlled designs.
Shipping weight increases. A 3.2mm board weighs approximately twice as much as a 1.6mm board of the same dimensions. For large orders shipped by air freight, this weight difference affects logistics cost.
Despite these increases, 3.2mm PCBs remain cost-effective for applications where the added rigidity, thermal performance, or mechanical fit justifies the premium. In power electronics and LED lighting, the reliability improvement alone often offsets the manufacturing cost difference.
Quality Verification and Testing
Before accepting delivery of 3.2mm PCB production, verify these critical parameters.
Thickness measurement. Use a micrometer to measure board thickness at multiple points — corners and center. The measured value should fall within the specified tolerance range at all locations.
Cross-section analysis. For critical applications, request a microsection (cross-section) report from the manufacturer. This reveals internal layer registration, copper plating thickness, hole wall quality, and laminate integrity that surface inspection cannot detect.
Drill quality inspection. Verify that through-holes are properly plated, with no voids or discontinuities in the copper barrel. High-aspect-ratio holes in thick boards are particularly susceptible to plating defects.
Warpage check. Place the board on a flat surface and measure any bow or twist. Industry standard IPC-A-600 defines acceptable warpage limits, typically 0.75% for board lengths under 300mm.
Electrical testing. Run both continuity and isolation tests to verify that all nets are properly connected and that no shorts exist between adjacent traces or planes.
Common Failure Modes and Prevention
Thick boards fail in ways that thinner boards typically do not. Awareness of these failure modes helps engineers design around them.
Lamination delamination. Insufficient prepreg resin content or inadequate press pressure can leave weak bonds between layers. Under thermal stress — particularly during reflow — these weak bonds separate, causing open circuits or intermittent failures. Prevention requires proper material selection and validated lamination parameters.
PTH barrel cracking. The difference in thermal expansion between the copper barrel and the laminate is amplified in thicker boards. During thermal cycling, the copper barrel can crack, creating intermittent or permanent opens. Using high-Tg or low-CTE laminate reduces this risk.
Drill breakout. When drill wander occurs in thick boards, the hole may deviate from its intended position, breaking out of the pad annular ring. Tighter drill registration and appropriate pad sizing prevent this issue.
Resin recession. After drilling, resin around hole walls can shrink during cure, leaving gaps between the resin and the copper barrel. This affects plating adhesion and long-term reliability. Optimized drill parameters and desmear processes address this problem.
FAQ: Frequently Asked Questions About 3.2mm to Inches
What is 3.2mm in inches?
3.2mm equals 0.12598 inches, commonly rounded to 0.126 inches in engineering contexts.
Is 3.2mm the same as 1/8 inch?
Not exactly. 1/8 inch equals 3.175mm, while 3.2mm equals 0.12598 inches. The difference is 0.025mm — negligible for general purposes but significant for precision mechanical assemblies.
How do I convert 3.2mm to inches without a calculator?
Divide 3.2 by 25.4. A quick mental estimate: since 25mm equals about 1 inch, 3.2mm is slightly more than 3.2/25 = 0.128 inches. The exact answer is 0.12598 inches.
What is the standard thickness of a PCB in inches?
The most common standard PCB thickness is 1.6mm, which equals 0.063 inches (1/16 in). The next most common is 2.0mm (0.0787 in). A 3.2mm PCB equals 0.126 inches and is used for heavy-duty industrial, power, and LED applications.
Why would I need a 3.2mm thick PCB instead of 1.6mm?
A 3.2mm board provides approximately twice the rigidity of a 1.6mm board, better thermal mass, improved vibration resistance, and the ability to fit enclosures designed for 1/8-inch standoff dimensions. Choose 3.2mm when mechanical stress, thermal demands, or enclosure constraints exceed what standard thickness can handle.
Does 3.2mm PCB thickness increase manufacturing cost?
Yes. Material cost increases by approximately 60–80% compared to 1.6mm, drilling costs rise due to higher aspect ratios, and shipping weight roughly doubles. However, the added cost is justified in applications requiring the performance characteristics of a thicker board.
What tolerance should I specify for 3.2mm PCB thickness?
A standard fabrication tolerance is ±10% (2.88mm to 3.52mm). For critical mechanical fits, specify ±5% (3.04mm to 3.36mm) or tighter, and confirm with your manufacturer that the tighter tolerance is achievable with their material and process capabilities.
Can I use 3.2mm and 1/8 inch interchangeably in my design?
Only if the tolerance of your application can absorb the 0.025mm difference between 3.2mm (0.12598 in) and 1/8 inch (3.175mm / 0.125 in). For precision assemblies, specify the exact value and include explicit conversion notes on your fabrication drawing.
What copper weight works best with 3.2mm PCBs?
1 oz copper (35μm) is standard for most applications. For power boards, 2 oz (70μm) or 3 oz (105μm) copper is common. Thicker copper increases current-carrying capacity but also affects impedance, trace width calculations, and etching precision.
What is the maximum drilling aspect ratio for a 3.2mm PCB?
Standard mechanical drilling supports aspect ratios up to approximately 10:1, meaning holes no smaller than 0.32mm diameter. For finer holes, HDI processes with laser drilling may be required, which adds cost and lead time.
How do I verify 3.2mm thickness after manufacturing?
Measure with a calibrated micrometer at multiple board locations. For critical applications, request a microsection (cross-section) report from the manufacturer, which reveals internal layer integrity, plating quality, and laminate bonding.
Is 3.2mm available in flex PCB?
Not typically. Flex and rigid-flex circuits use polyimide-based constructions at much thinner values — usually 0.1mm to 0.4mm. A 3.2mm PCB is a rigid board construction using FR-4 or similar laminate.
What industries commonly use 3.2mm PCBs?
Common applications include LED lighting, power supplies, motor controllers, industrial automation equipment, military and defense systems, transportation electronics, and medical devices where mechanical robustness and thermal performance are critical.
How does 3.2mm thickness affect impedance control?
Thicker boards change the dielectric distance between signal layers and reference planes. Your stackup designer must recalculate trace widths and spacing to maintain target impedance values. Standard 50-ohm single-ended or 100-ohm differential impedance targets remain achievable but require updated calculations for the specific 3.2mm stackup.
Can I mix 3.2mm boards with 1.6mm boards in the same enclosure?
Yes, but plan for different standoff heights, mounting hardware lengths, and connector alignments. Document both board thicknesses clearly in the mechanical assembly drawing and verify fit with a physical prototype before committing to production.
Summary
3.2mm to inches converts to 0.12598 inches (approximately 0.126 in), sitting just above the 1/8-inch fractional equivalent of 3.175mm. In PCB manufacturing, this thickness serves industrial, power, and LED applications where standard 1.6mm or 2.0mm boards lack the rigidity, thermal mass, or mechanical fit required by the design. Choosing 3.2mm involves tradeoffs in cost, drilling complexity, and lamination process control — but for applications that demand it, the performance and reliability benefits justify the premium. Specify exact tolerances, confirm stackup with your manufacturer, and verify delivered thickness through measurement and testing to ensure your design intent is met in production.
