A China PCB prototype service is useful when you need a fast, manufacturable board before committing to volume production. The best result comes from sending complete files, asking for DFM review, and using the first batch to check fit, solderability, electrical behavior and quotation assumptions.
This guide is written for engineers and buyers who need a practical sourcing path: what to send, what to check, where quotes change, and how to compare a supplier response before releasing production. For related preparation work, review Gerber file preparation and how to get a PCB made.
What Should a China PCB Prototype Service Review First?
The first review should confirm whether the design data, board purpose and production assumptions match. A supplier can price a simple file package quickly, but a useful engineering review should also catch missing stackup notes, unclear tolerances, unrealistic holes, unsupported finishes, risky component placement and testing gaps.
For low-volume or first-build work, ask the supplier to separate mandatory issues from optional improvements. Mandatory issues stop fabrication or assembly. Optional improvements reduce cost, yield risk or later rework.
Which Files Are Needed for a Prototype PCB Quote?
A complete RFQ package gives the supplier enough information to quote without guessing. At minimum, send the manufacturing files, drawings, quantity, delivery target and any assembly or test documents. If the quote involves assembly, include the BOM and CPL at the same time.
| Item | Why it matters |
| Gerber and drill files | Confirms copper, solder mask, silkscreen, outline, slots and holes. |
| Board specification | Material, thickness, copper weight, finish, solder mask color and tolerance notes. |
| DFM questions | Minimum track/space, annular ring, drill limit, impedance need and panelization risk. |
| Quote quantity | Prototype quantity plus next small-batch expectation so tooling and panel decisions are realistic. |
Prototype PCB Specs That Change Cost and Lead Time
Cost and lead time usually change when the supplier finds a process constraint, missing document or component risk. Layer count, board size, copper weight, surface finish, impedance, small drills, panel use and test scope are common price drivers. For assembly projects, component sourcing and test fixtures can matter more than the bare PCB price.
Buyers should compare quotes by assumption, not only total price. A lower quote may exclude testing, substitute approval, X-ray, tooling, engineering review or delivery terms.
DFM Checks to Request Before Fabrication
DFM and first-article checks are where many avoidable problems are found. Ask whether the files match the selected process window, whether any design feature increases yield risk, and whether the supplier needs written approval before changing panelization, drill size, solder mask clearance, component alternates or test coverage.
- Check board outline, slots, castellations and edge clearance.
- Confirm solder mask bridges, annular ring, drill tolerance and copper-to-edge distance.
- Review polarity marks, pin-one orientation and connector direction.
- Confirm AOI, electrical test, X-ray or functional test scope when relevant.
When Should You Move From Prototype to Small Batch?
The right decision depends on what the first build is supposed to prove. If the goal is electrical bring-up, order enough boards to test rework and firmware. If the goal is buyer approval or pilot production, request process notes, inspection photos and packaging details. If the design is stable, ask for the next quantity break so the supplier can suggest a better panel or assembly plan.

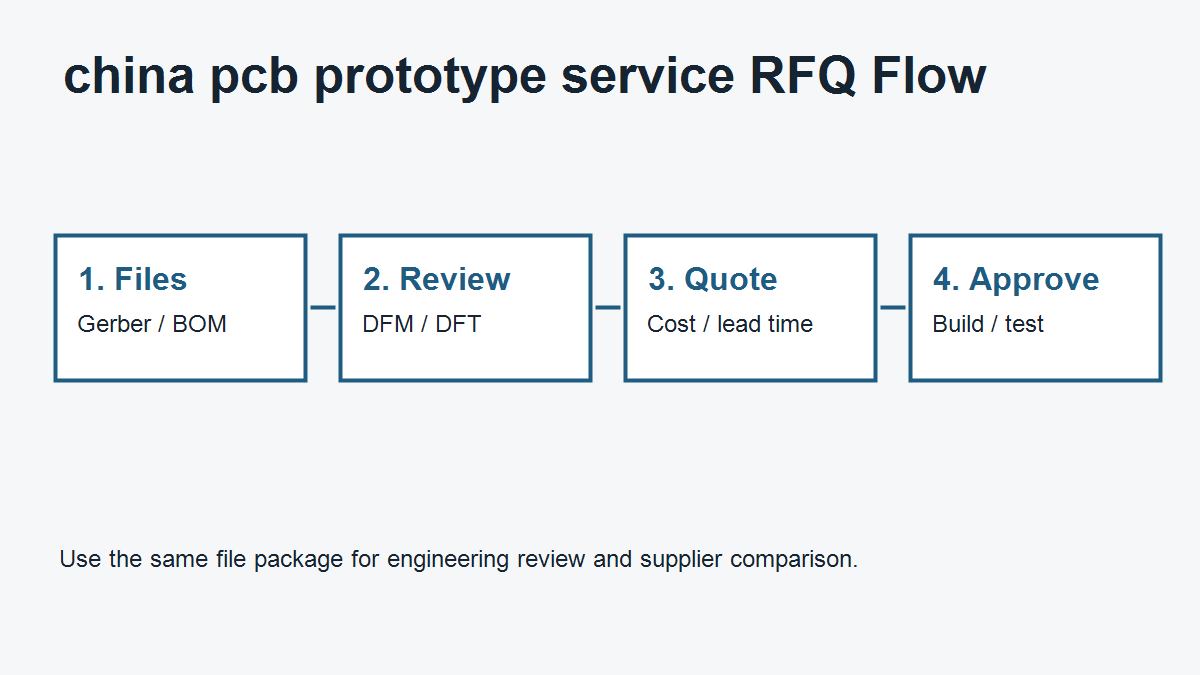

China PCB Prototype Service RFQ Checklist
Before sending the RFQ, prepare one clean ZIP package and one short note explaining the project goal. Include:
- Gerber or ODB++ files and NC drill data.
- Fabrication drawing with material, thickness, copper, finish and tolerance notes.
- BOM with exact MPNs, alternates and DNI items if assembly is required.
- CPL / pick-and-place data with rotation and side information.
- Assembly drawing, polarity notes, programming file and test instructions when available.
- Quantity, target lead time, shipping destination and expected next production stage.
For commercial comparison, send the same file package to each supplier. That makes the response easier to compare and reduces hidden quote differences. You can also use PCBTRY for an engineering review and comparison quote.
FAQs
What files are normally required for a China PCB prototype service?
Send Gerber or ODB++ data, NC drill files, a fabrication drawing, stackup notes if controlled impedance is needed, and the prototype quantity. If assembly may follow, include the BOM and CPL early so the supplier can flag footprint, polarity or sourcing risks before the first build.
Should I ask for DFM before paying for prototypes?
Yes. A short DFM review can catch small drill limits, solder mask bridge risk, copper-to-edge spacing, unclear slots and panelization issues before the order starts. Ask the supplier to separate must-fix items from optional cost or yield improvements.
How many prototype PCBs should I order first?
Order enough boards to test electrical bring-up, mechanical fit, rework and at least one backup unit. Very small quantities reduce initial cost but may not reveal assembly, programming, fixture or pilot-batch risks.
What causes prototype PCB quote changes?
Quote changes usually come from missing drawings, unusual material, tight spacing, small holes, controlled impedance, special finishes, unclear tolerances or assembly documents that arrive after the bare-board quote.
Can prototype PCB files be used for small-batch production?
Often yes, but only after the first build is reviewed. Before moving to a small batch, update the revision, fix DFM notes, confirm test coverage, and remove any temporary prototype assumptions.
Is the fastest prototype service always the best option?
Not always. Fast delivery is useful only if the supplier also checks manufacturability and communicates assumptions. A rushed build with unclear files can create a second prototype and cost more overall.
What should I compare between China PCB prototype quotes?
Compare included testing, material assumptions, finish, lead time, shipping, engineering review, panelization notes and whether assembly support is available. Do not compare only the board unit price.
When should I send the supplier the enclosure drawing?
Send it before fabrication when board outline, mounting holes, connector position, keep-out areas or component height affect fit. Mechanical mismatches are common prototype failures.
Can I request electrical testing on prototype PCBs?
Yes. Bare-board electrical testing is useful when nets are dense or the board will be assembled immediately. For assembled prototypes, define functional or power-on tests separately.
When should I contact PCBTRY?
Contact PCBTRY when your Gerber files or prototype requirements are ready for engineering review, DFM feedback and a comparison quotation. Send the files and notes to
Final RFQ Step
If you are preparing a PCB or PCBA project and want an engineering review before ordering, send your Gerber files, BOM, CPL, quantity, material notes, copper weight, surface finish, test requirements and target delivery date to [email protected]. The team can review the package, point out quote risks and provide a manufacturing or assembly quotation.
